Description

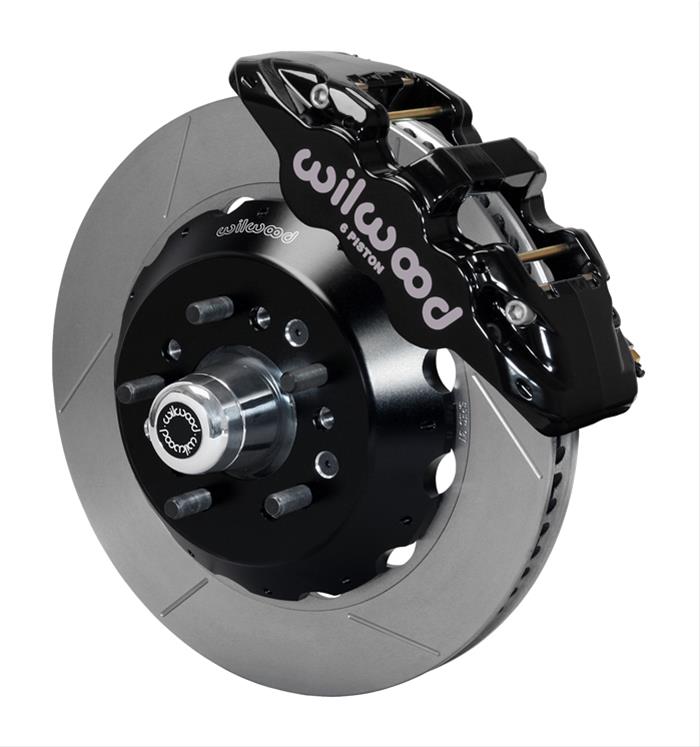

The Wilwood AERO6 Big Brake Front Brake Kit (manufacturer part number 140-15025; Summit Racing part number WIL-140-15025) is a matched front brake package with six-piston AERO6 calipers, slotted vented rotors and brake pads. The forged billet aluminum calipers have a black finish.
Each front rotor measures 15.00 in. (381.00 mm) in diameter and 1.25 in. thick. The rotors have a dual bolt pattern: 5 x 4.50 in. (5 x 114.30 mm) and 5 x 4.75 in. (5 x 120.65 mm). The kit includes 1/2 in.-20 wheel studs.
- Front rotors, front calipers and BP-20 friction-material brake pads are included.
- Minimum recommended wheel diameter: 19 in.
- Designed for use with a Wilwood ProSpindle; select the kit designed for your vehicle’s fitment.
- Sold as a kit; not remanufactured.
This is a front-only kit. Rear rotors and rear calipers are not included. Front spindles, a master cylinder, brake booster and brake hoses are also not included. The kit does not provide a parking brake provision.
Wilwood describes AERO6 Big Brake kits for extreme vehicles, including show cars, dual-purpose street and track cars, towing trucks and off-road SUVs. UPC: 889545073461.
