Description

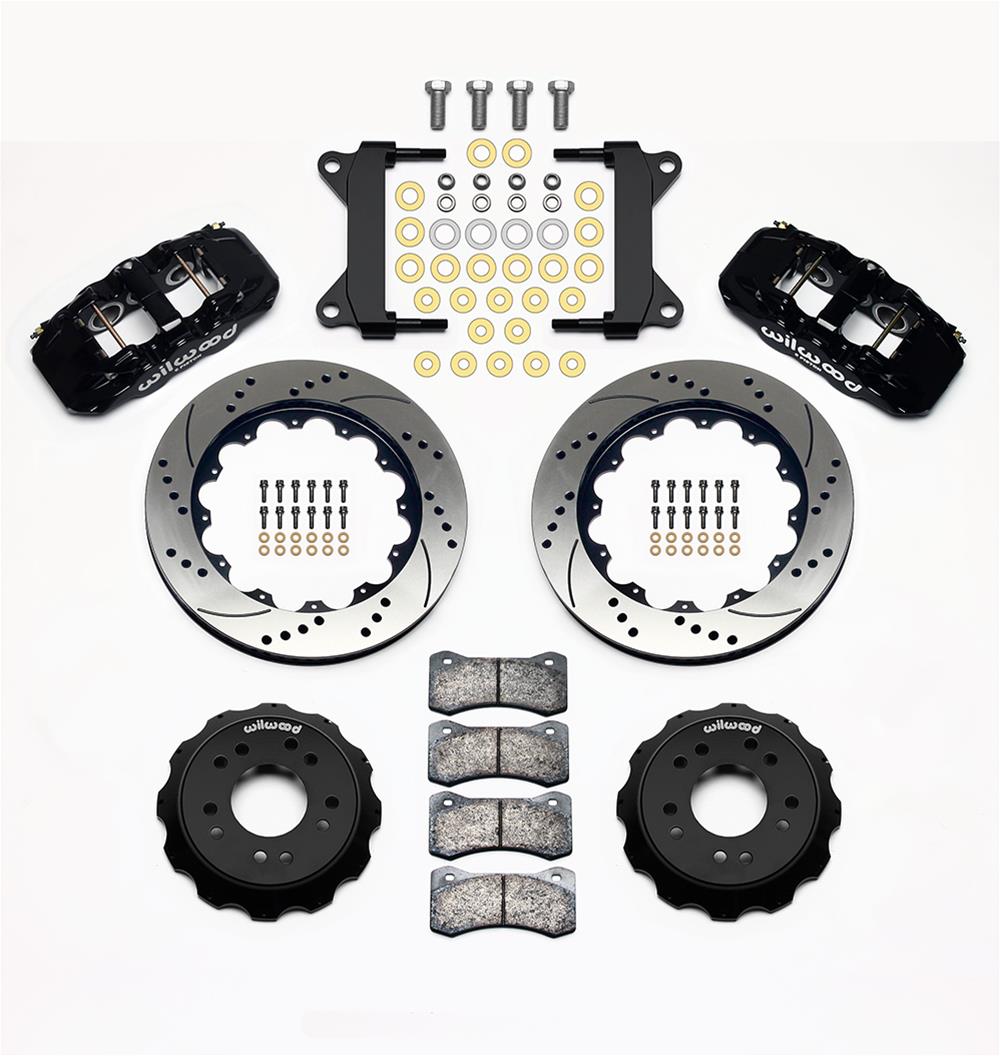

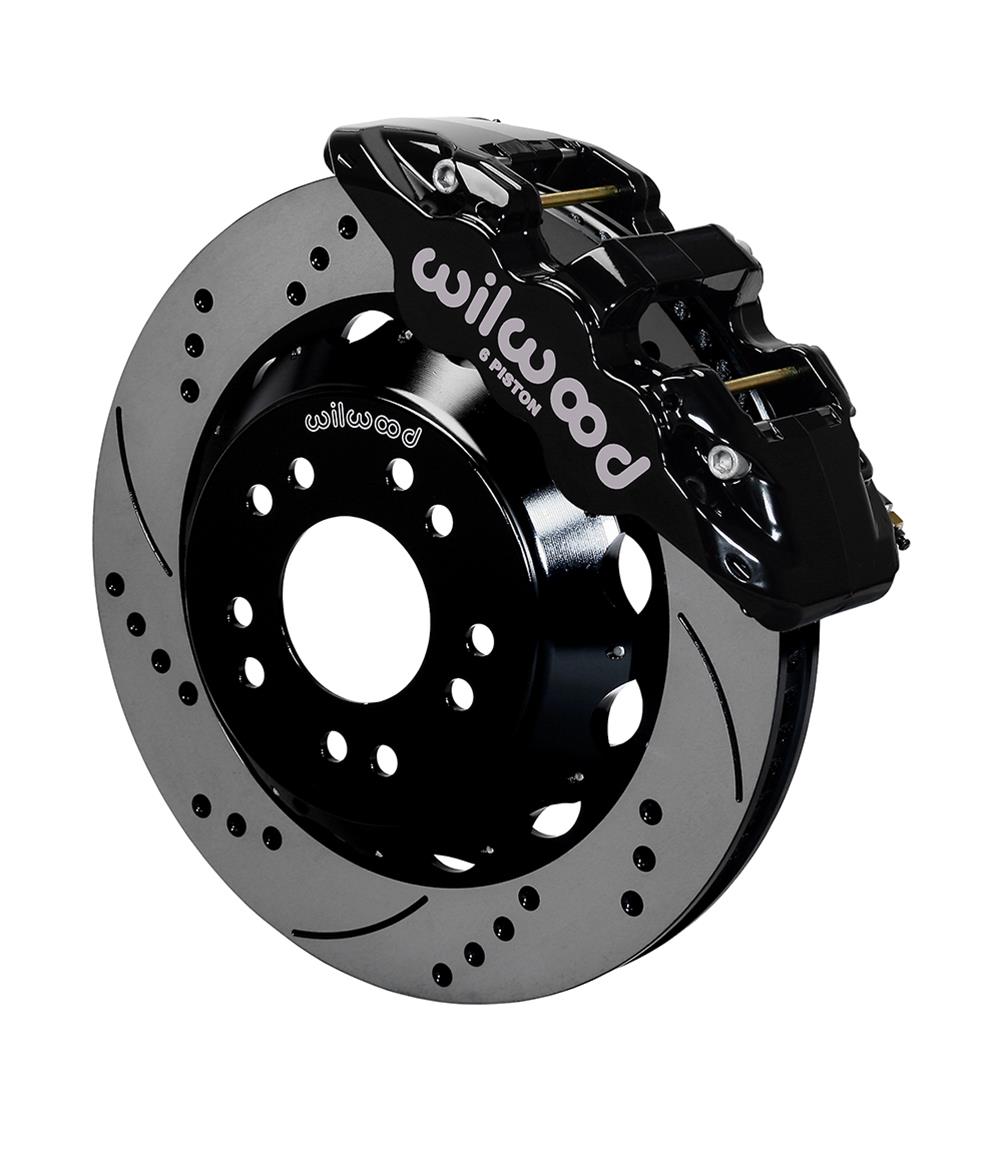

The Wilwood AERO6 Big Brake Front Brake Kit, part number 140-15305-D (Summit Racing part number WIL-140-15305-D), is a matched front brake package with a six-piston forged billet aluminum caliper, rotor, and brake pads. The caliper is finished in black, and the kit is sold as a complete kit.

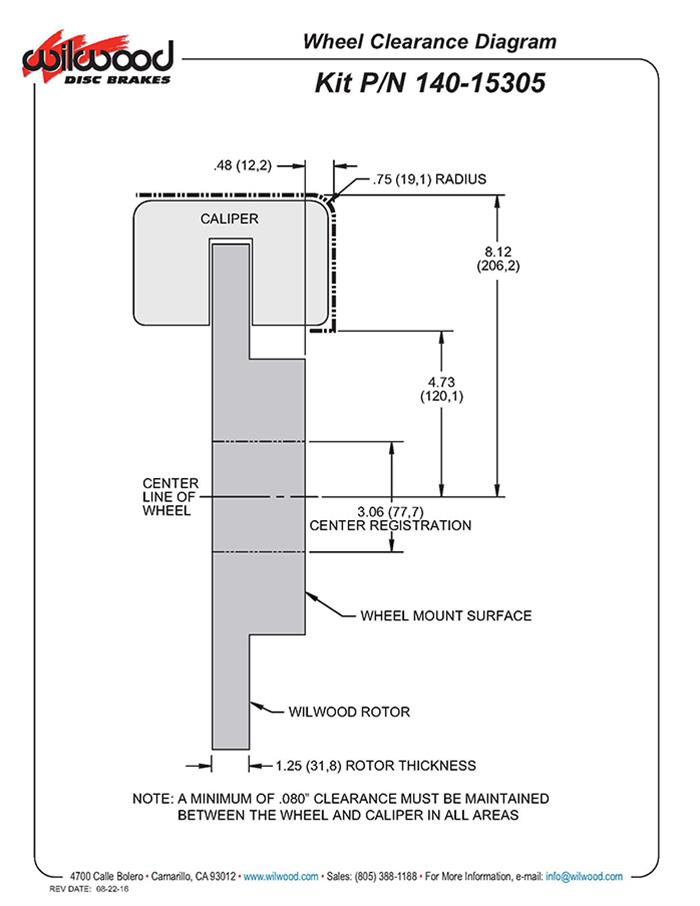

Its 14.00-inch (355.60 mm) vented front rotor has a cross-drilled and slotted surface and is 1.25 inches thick. The rotor has a dual bolt pattern for 5 x 4.75-inch or 5 x 5.00-inch applications (5 x 120.65 mm or 5 x 127.00 mm).
- Front rotor, front caliper, and BP-20 friction-material brake pads are included.
- Rear rotors and rear calipers are not included.
- No parking brake provision.
- Minimum recommended wheel diameter: 18 inches.
- Front spindles, master cylinder, brake booster, and brake hoses are not included.
- Uses a Wilwood Modular drop spindle.
- Not remanufactured.
AERO6 kits are intended for applications such as show vehicles, dual-purpose street and track cars, towing trucks, and off-road SUVs, according to Wilwood. Confirm the specific kit is designed for your vehicle before ordering; the source specifies the Modular drop spindle requirement but does not list vehicle fitment.
