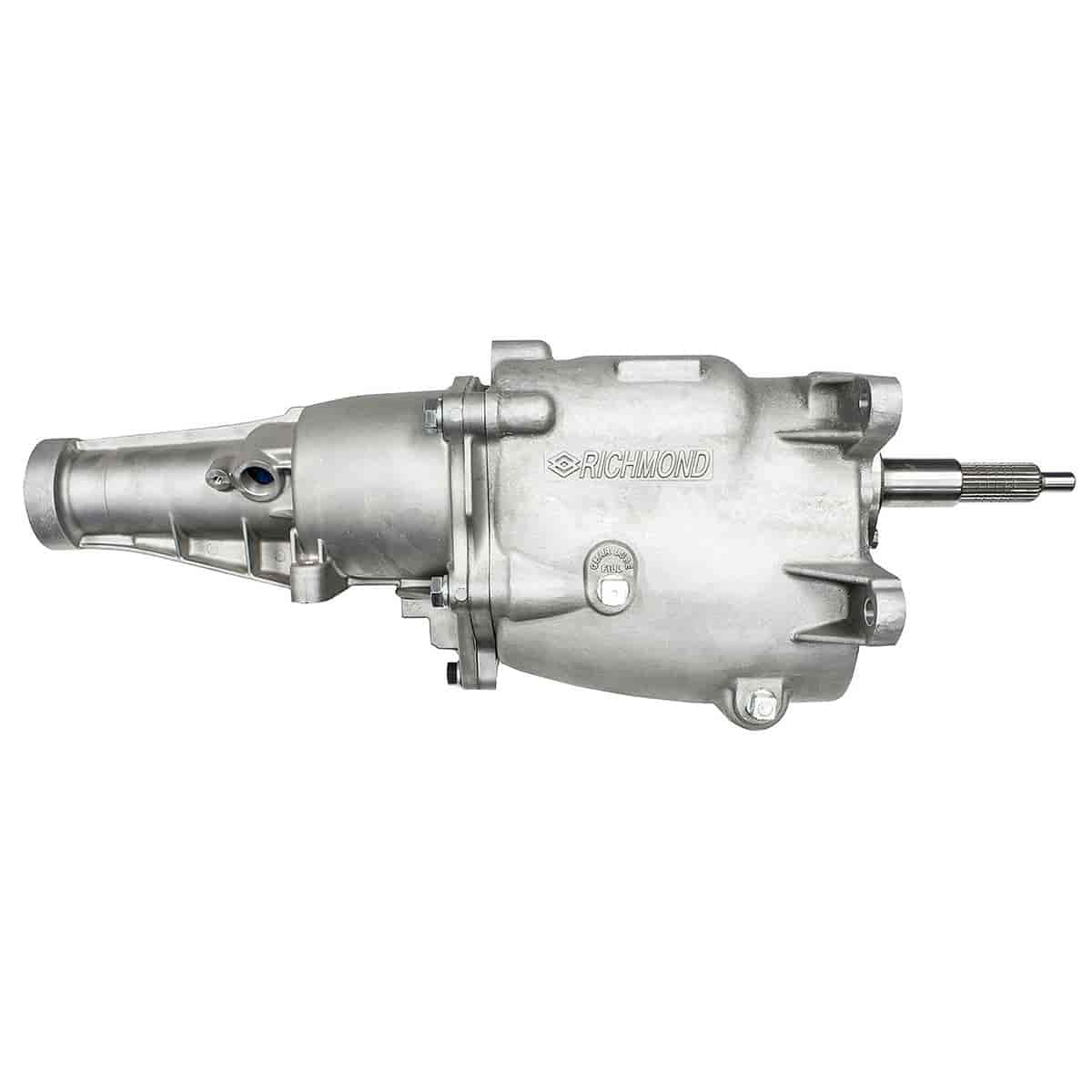

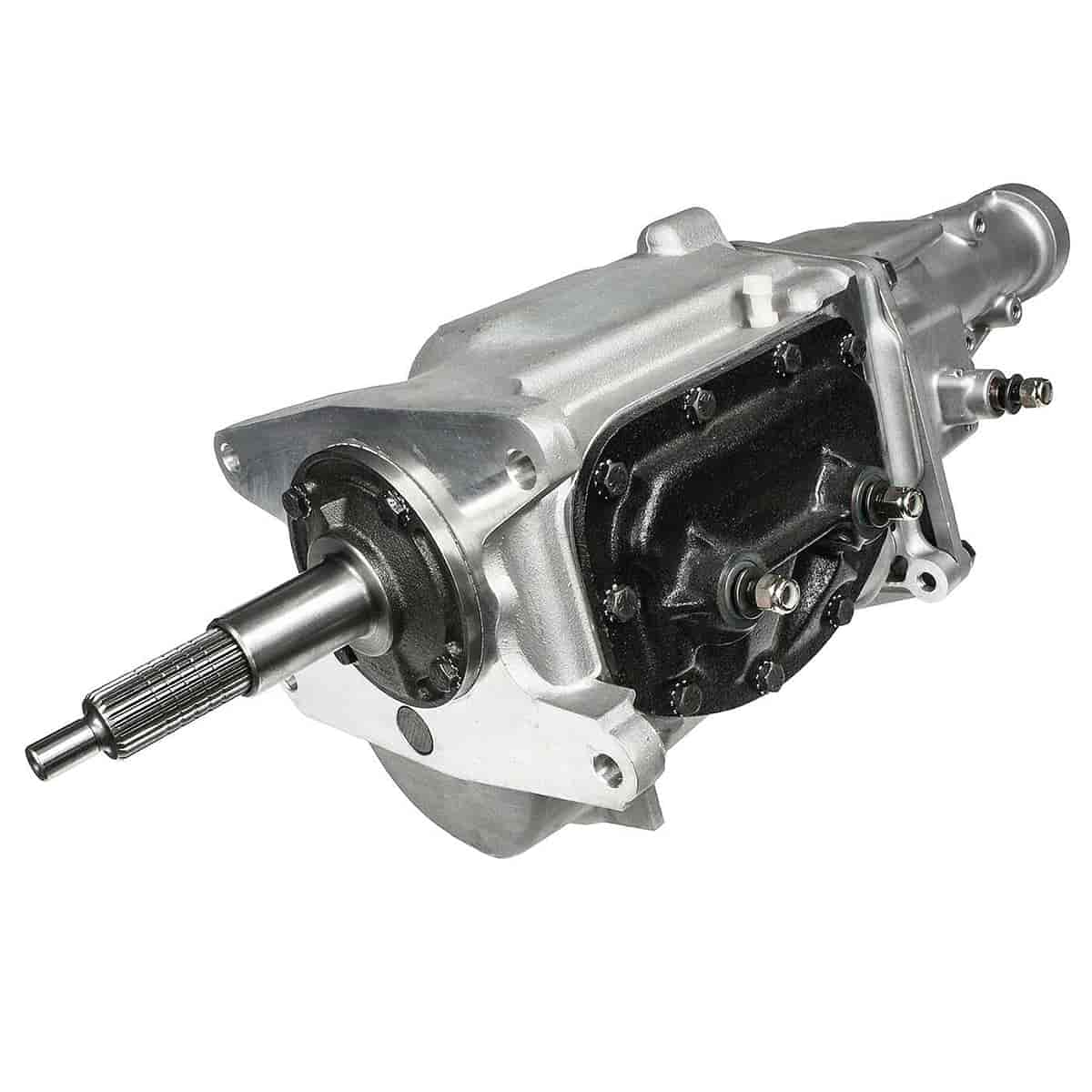

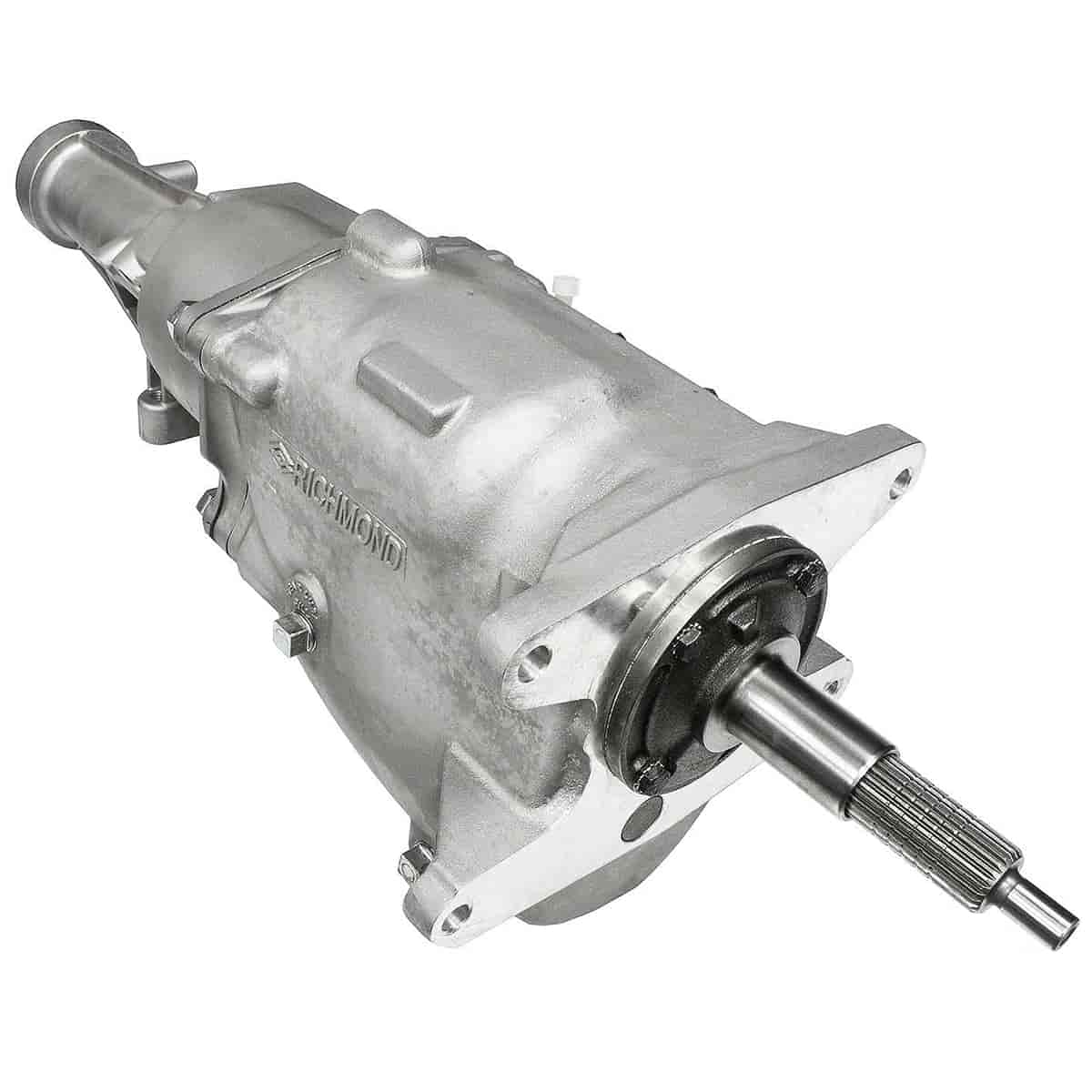

Name: Richmond Gear 1304000069 Super T-10 4-Speed Transmission, GM 2.64
SKU: 78152
Availability: InStock

Description

Super T-10
Richmond 1304000069 Features:

Input Shaft Diameter: 1.125 in.

Input Shaft Spline Quantity: 26

Oil Capacity: 1.200 Quarts

Oil Type: GL-4 80w-90

Output Shaft Diameter: 1.375 in.

Output Shaft Spline Quantity: 32

Richmond Transmission Warranty
Specifications:

Part Type

Manual Transmission

Product Line

Richmond 4-Speed Super T-10 Transmissions

Bellhousing Included

No

First Gear Ratio

2.64:1

Fourth Gear Ratio

1.00:1

Input Shaft Diameter

1.125 in (28.575 mm)

Input Spline Quantity

26

Number of Gears

Four

Output Shaft Spline Diameter

1.375 in (34.9 mm)

Output Shaft Spline Quantity

32

Package Depth

35.00

Package Height

16.50

Package Width

16.00

Part Category

Performance Parts

Part Fitment

Semi Universal

Quantity

Sold individually

Second Gear Ratio

1.75:1

Shifter Included

No

Shipping Weight

82.00

Third Gear Ratio

1.34:1

Trans Model

Super T-10 4 Speed

Vendor Part Number

1304000069

Yoke Included

No

Yoke Style

Slip On
Manual Transmissions Designed for the Demands of Racing

Richmond’s 4-speed, manual-shift Super T-10 transmission is available in a base model known as “the NASCAR standard” or a Plus version built for road course racing. Additionally, Super T-10 Plus Transmissions have a steel input bearing retainer and race brass synchro rings.
