Description

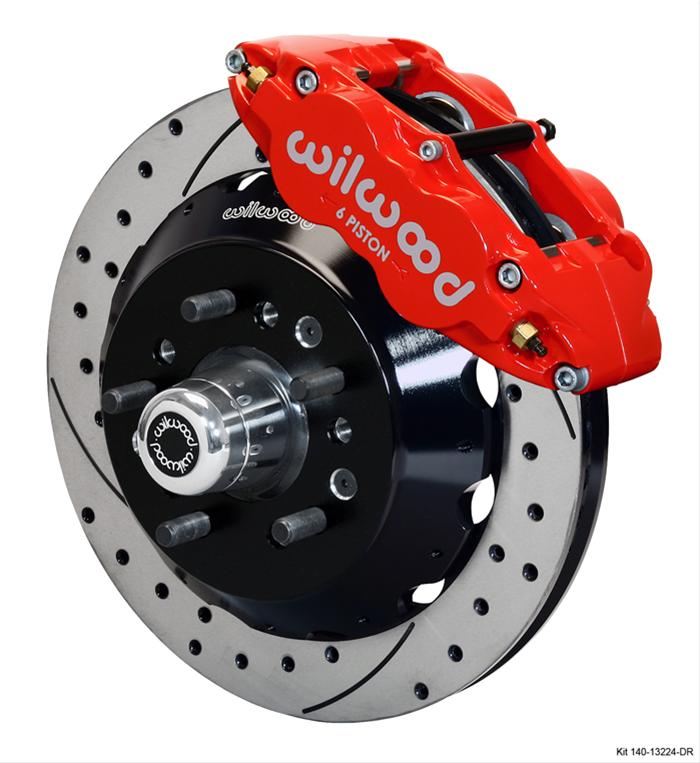

The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-13224-DR; Summit Racing part number WIL-140-13224-DR) is a front-disc-brake upgrade built around forged billet-aluminum, six-piston calipers. The calipers are finished in red, and the kit includes BP-10 brake pads.

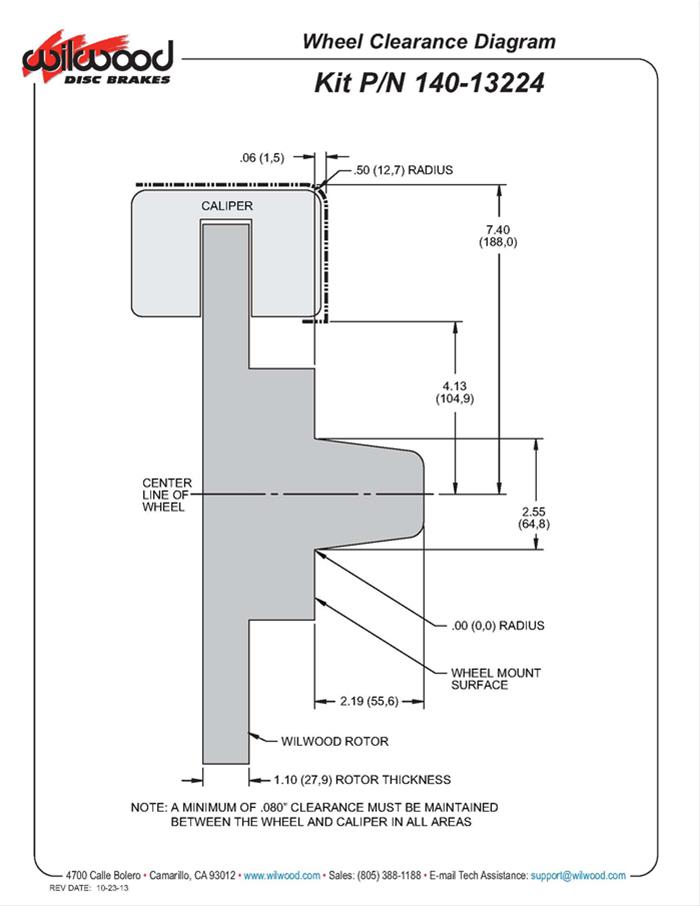

This kit is designed to fit TCI disc brake spindles only. Check spindle fitment and wheel clearance before ordering; the minimum recommended wheel diameter is 17 inches. Wilwood describes this kit family as application-specific and designed for compatibility with OE master cylinder output and ABS functions where used.
- Position: Front
- Rotors: Included; 12.88 in. (327.20 mm) diameter, 1.10 in. thick, vented, with cross-drilled/slotted surfaces
- Rotor bolt patterns: Dual 5 x 4.50 in. / 5 x 4.75 in. (5 x 114.30 mm / 5 x 120.65 mm)
- Calipers: Included; forged billet aluminum, six pistons, red finish
- Pads: Included; BP-10 friction material
- Wheel studs: Includes 1/2 in.-20 studs
Rear rotors and calipers, front spindles, master cylinder, brake booster, and brake hoses are not included. There is no parking brake provision. This is a new, non-remanufactured kit, sold as one kit. UPC: 889545019414.
