Description

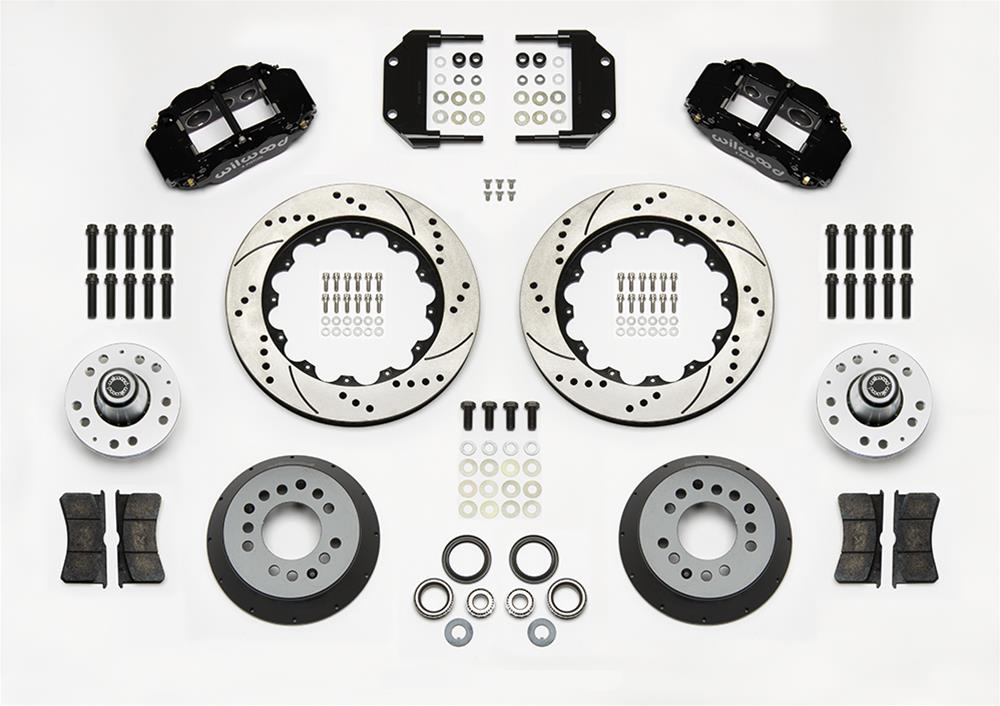

Upgrade the front brakes with Wilwood Forged Narrow Superlite 6R Big Brake Kit 140-14277-D (Summit Racing part number WIL-140-14277-D). This application-specific kit is designed to fit Magnum Force 2-inch drop spindles and includes the front braking components listed below.

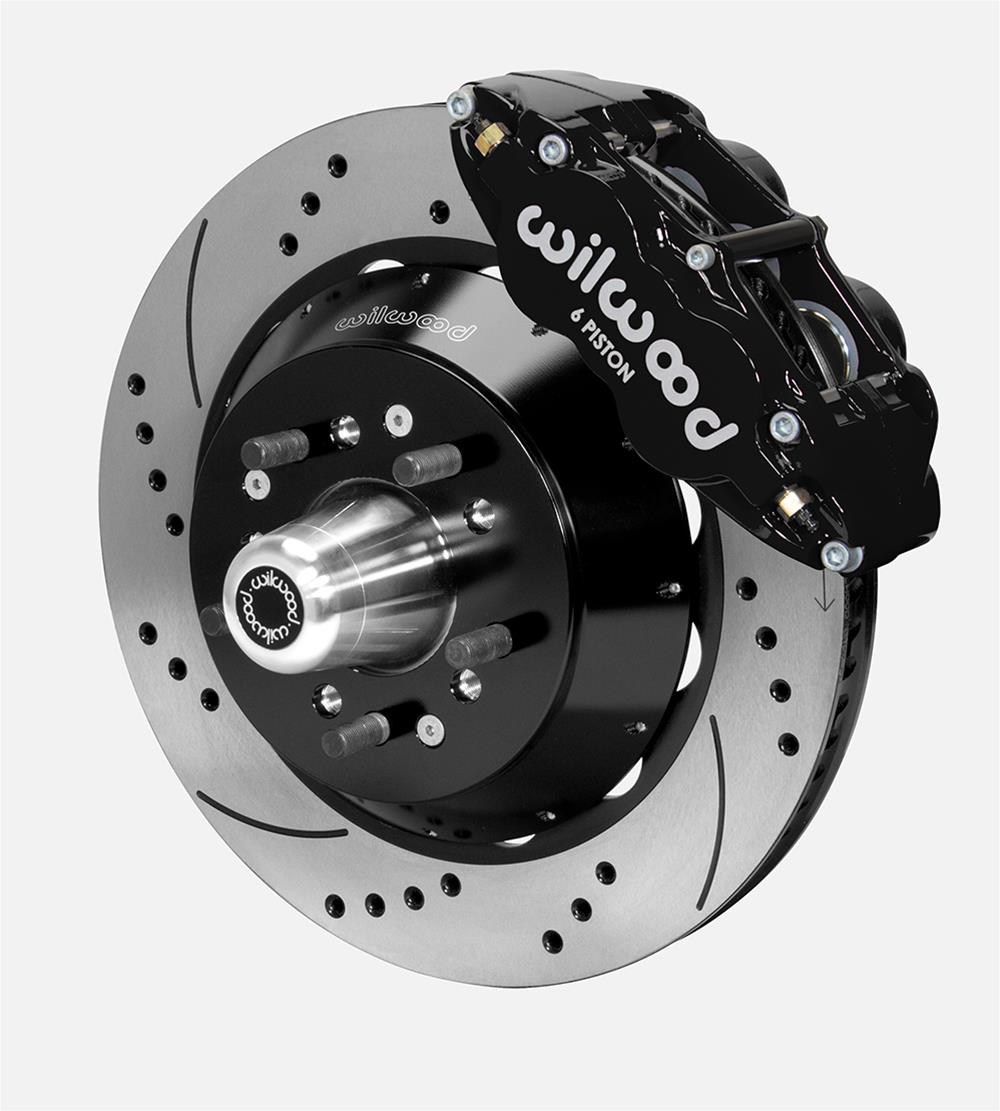

- Forged billet aluminum, black six-piston front calipers
- 14.00-inch (355.60 mm) vented front rotors, 1.10 inches thick, with a cross-drilled/slotted surface
- Dual rotor bolt patterns: 5 x 4.50-inch and 5 x 4.75-inch (5 x 114.30 mm and 5 x 120.65 mm)
- BP-10 brake pads and 1/2-inch-20 wheel studs included
- 0.250-inch offset; minimum recommended wheel diameter: 18 inches
The six-piston radial-mount caliper design provides increased front brake capacity. The kit is intended for application-specific installation; Wilwood describes this kit line as compatible with OE master-cylinder output and ABS functions where those systems are used.
This is a front kit only. Rear rotors and calipers are not included, and there is no parking-brake provision. Front spindles, master cylinder, brake booster, and brake hoses are also not included. The kit is not remanufactured and is sold as one kit.
Wilwood Disc Brakes part number: 140-14277-D. UPC: 889545078442.
