Description
The Wilwood Forged Superlite 6R front brake race kit, part number 140-15554-D (Summit Racing part number WIL-140-15554-D; UPC 889545089141), is described for unrestricted-category road racing on 2000–2009 Honda S2000 models. The kit includes front brakes only; the product description says it is intended for wheels 17 inches or larger, while the listed minimum recommended wheel diameter is 18 inches.

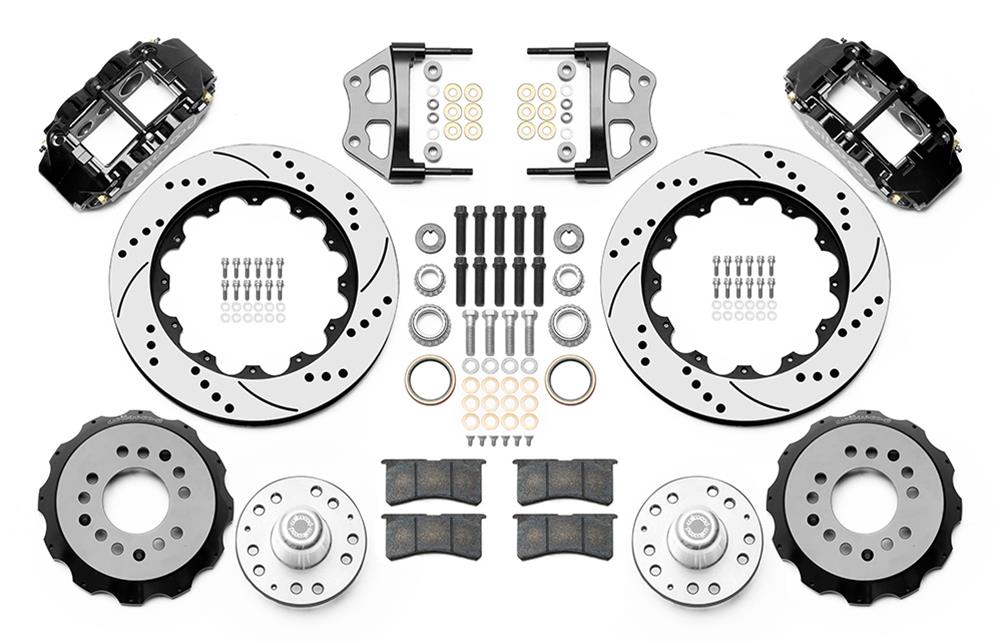

Included are black six-piston FSL6R/ST front calipers made from forged billet aluminum, BP-10 endurance race brake pads, stainless steel braided flex lines, mounting brackets and premium-grade fasteners. The calipers have a Type III mil-spec hard-anodized finish. The kit also includes vented front rotors with a cross-drilled/slotted surface.

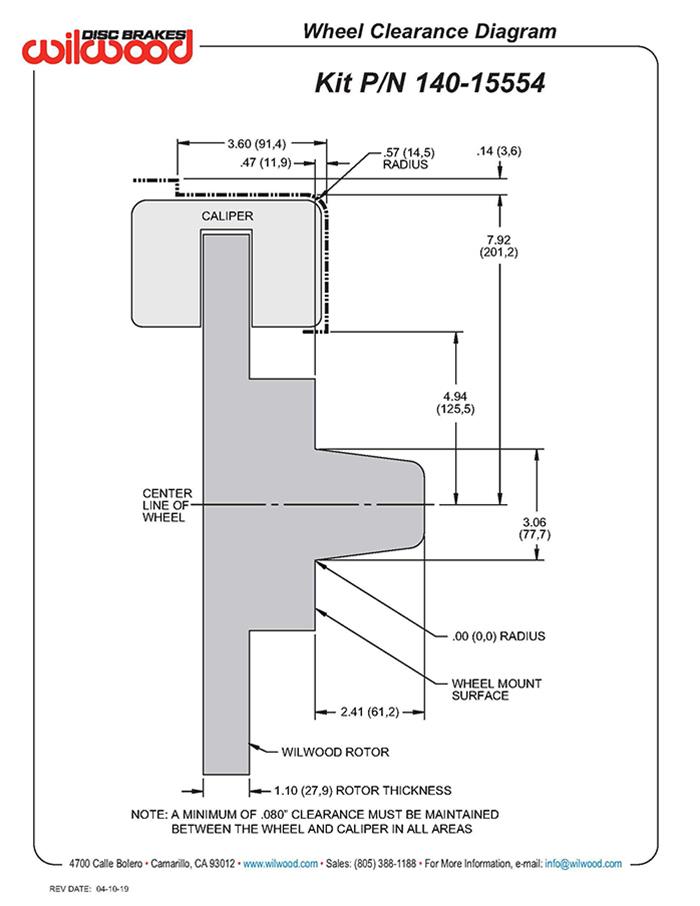

Rotor specifications require confirmation: the listed specifications give a 14.00-inch (355.60 mm) diameter and 1.10-inch thickness, with a dual 5 x 4.50-inch / 5 x 4.75-inch (5 x 114.30 mm / 5 x 120.65 mm) bolt pattern. The detailed kit description instead identifies Spec37 alloy GT Competition Series directional-vane rotors measuring 12.88 inches, dynamically mounted to the OE hubs with forged aluminum hats. Confirm the applicable rotor specification before ordering.
Wilwood describes the calipers as using Thermlock pistons to reduce heat transfer, internal damper springs, controlled retraction and high-temperature piston seals. Caliper piston volumes are matched for compatibility with the OE power brake booster and master cylinder; manual-brake conversions and balance-bar pedals can be configured with appropriately sized master cylinders.
Rear rotors and calipers, front spindles, master cylinder and brake booster are not included. The kit is not remanufactured and has no parking-brake provision. Quantity: one kit.
