Description

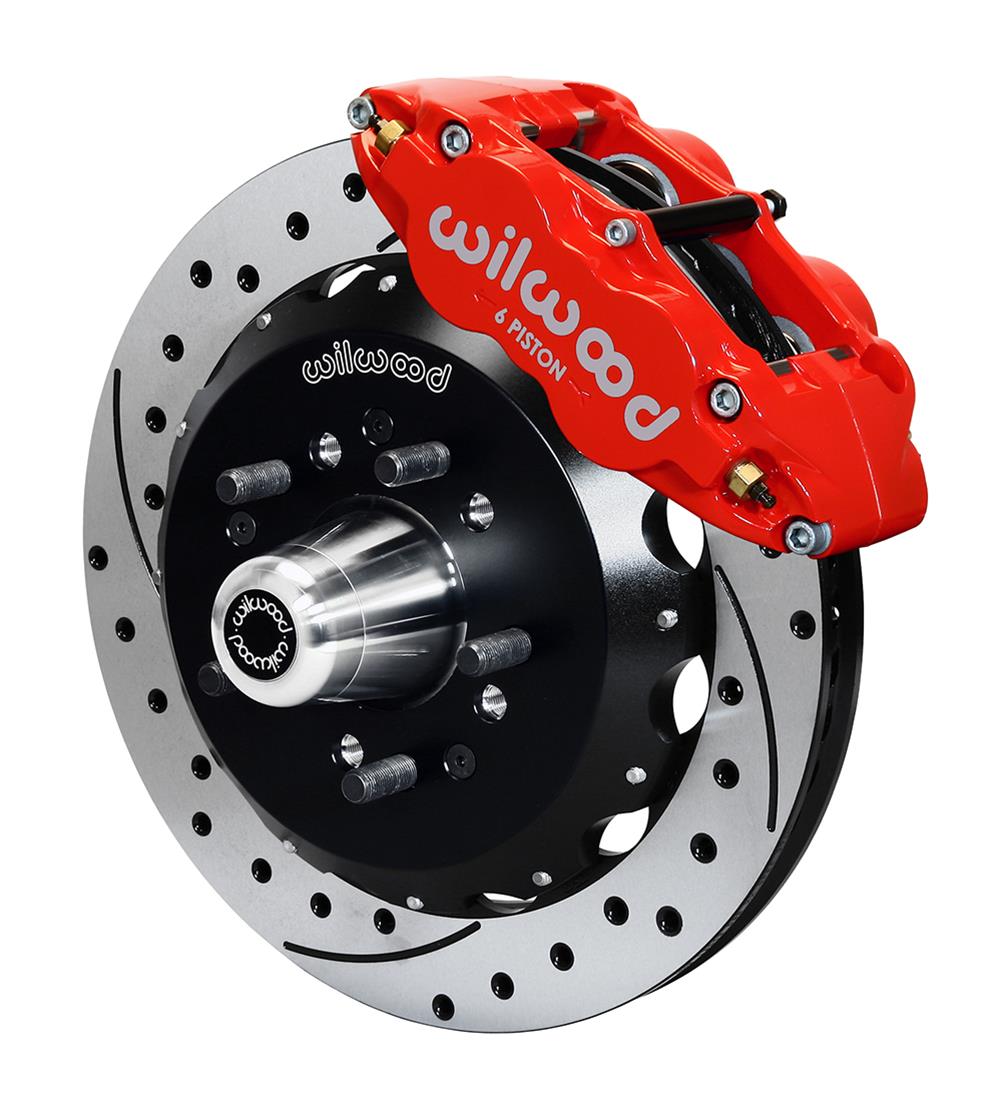

Upgrade the front brakes with the Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit, part number 140-12307-DR. This application-specific kit uses forged billet aluminum, six-piston front calipers in red and includes front rotors and BP-10 brake pads.
The vented rotors have a cross-drilled and slotted surface, measure 12.88 in. (327.20 mm) in diameter and 1.10 in. thick, and use a dual bolt pattern: 5 x 4.50 in. or 5 x 4.75 in. (5 x 114.30 mm or 5 x 120.65 mm). A minimum recommended wheel diameter of 17 in. is specified.
Fitment note: This kit is designed for applications using Heidts or Ridetech 2 in. front drop spindles. Confirm application fitment before ordering. Wilwood describes the kit family as compatible with OE master cylinder output and ABS functions, where used.

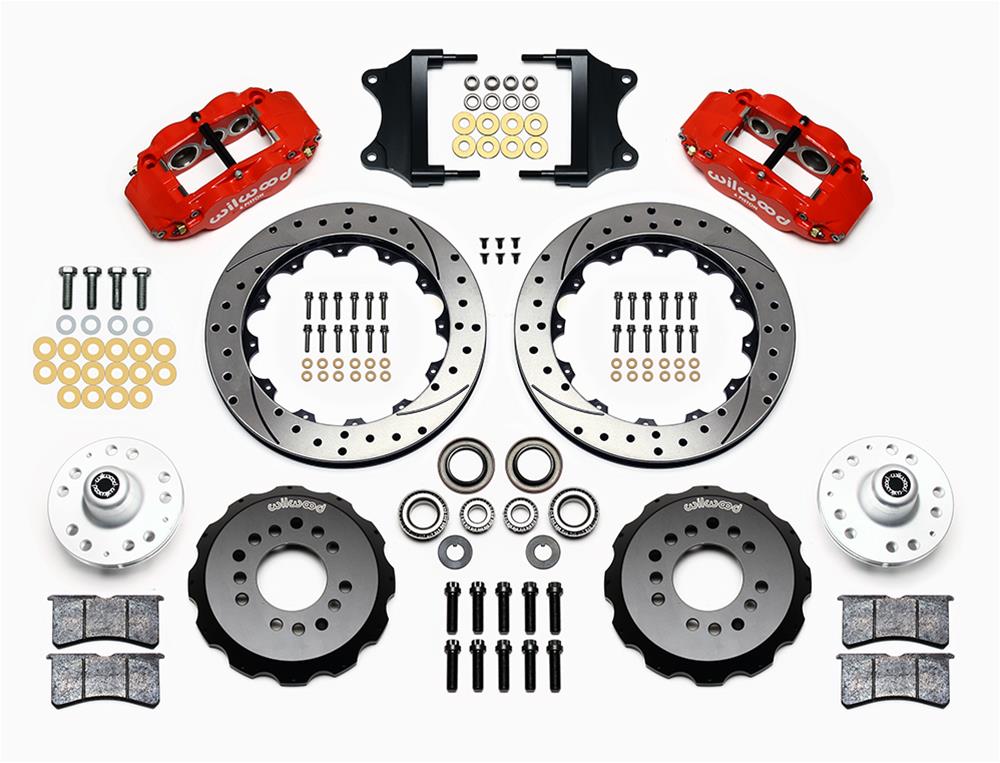

- Front rotors, front calipers and brake pads are included; kit is sold as a kit.
- Rear rotors and rear calipers are not included. No parking brake provision.
- Front spindles, master cylinder, brake booster and brake hoses are not included.
- Not remanufactured.
Product details: Wilwood Disc Brakes; product line: Forged Narrow Superlite 6R Big Brake Front Brake Kits; Summit Racing part number WIL-140-12307DR; UPC 889545016253. Position: front.
