Description

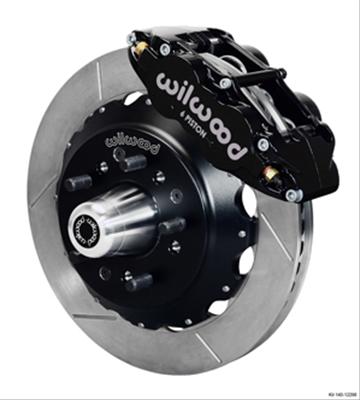

The Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit (manufacturer part number 140-12298; Summit Racing part number WIL-140-12298) is a front disc brake kit with six-piston forged billet aluminum calipers in black. It is sold as a kit and includes front rotors and brake pads.
- Front rotors: 12.88 in. (327.20 mm) diameter, 1.10 in. thick, vented, with a slotted surface
- Rotor bolt patterns: Dual 5 x 4.50 in. / 5 x 4.75 in. (dual 5 x 114.30 mm / 5 x 120.65 mm)
- Brake pads: BP-10 friction material

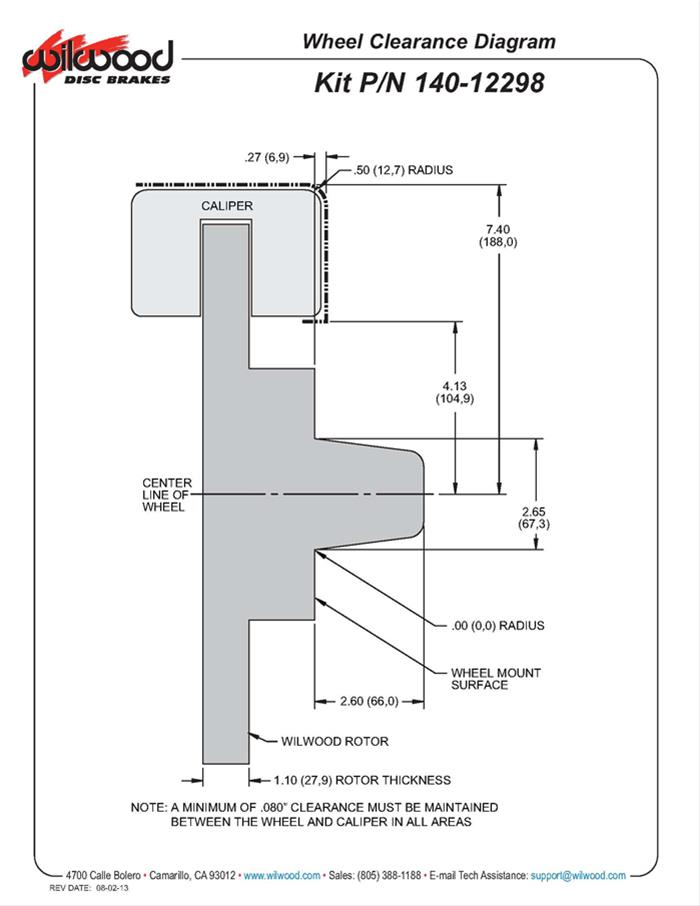

- Minimum recommended wheel diameter: 17 in.
- Included hardware: 1/2 in.-20 wheel studs
The application-specific kit is designed for front installation. Wilwood states that the design is compatible with OE master cylinder output and ABS functions where those systems are used. Check vehicle application and wheel clearance before ordering.
This kit does not include rear rotors or rear calipers, a parking brake provision, front spindles, a master cylinder, a brake booster, or brake hoses. It is not remanufactured. UPC: 889545016079.
