Description

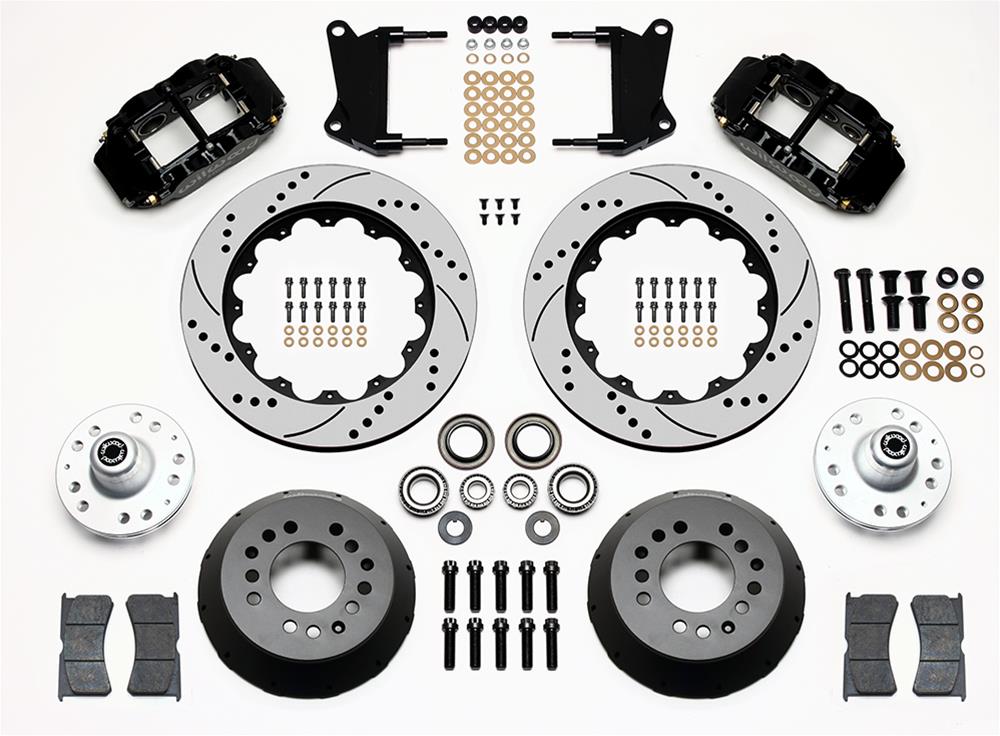

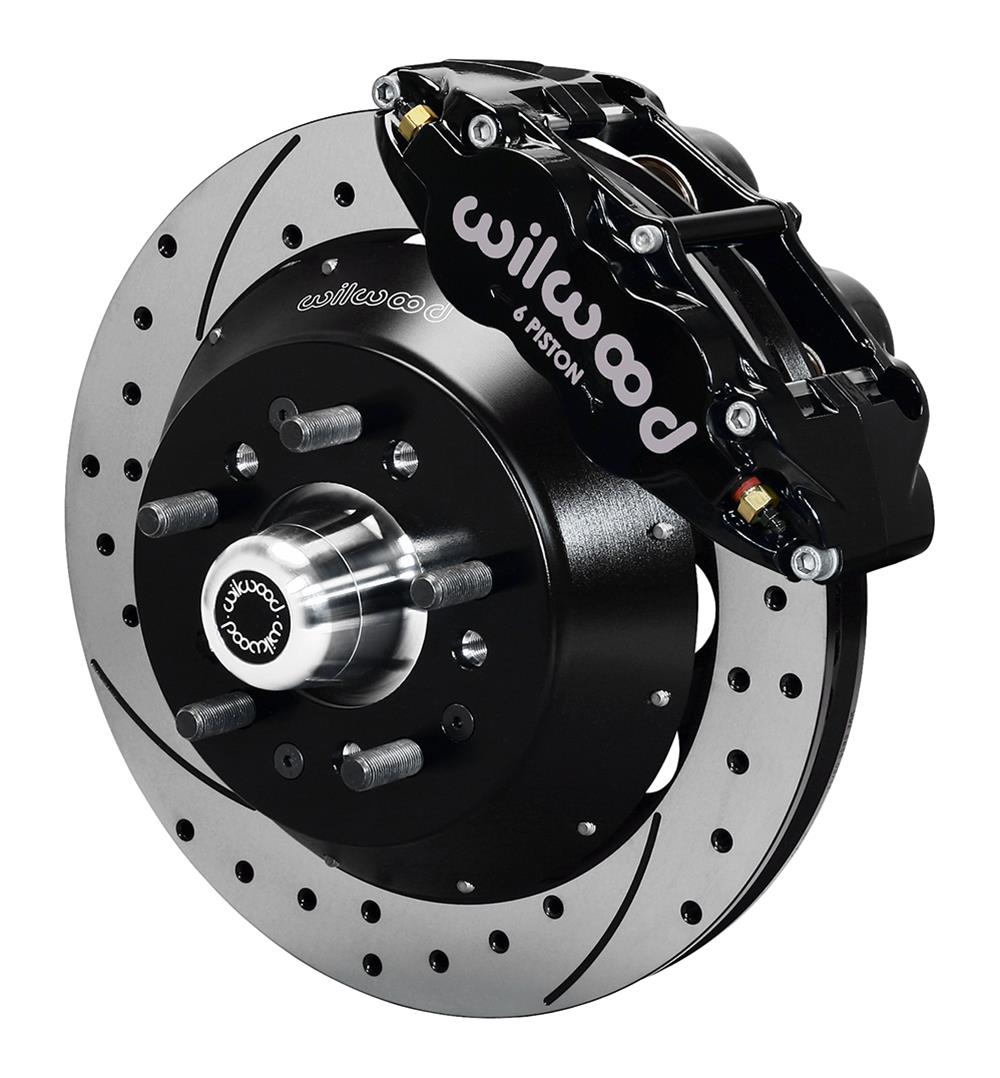

Upgrade the front brakes with Wilwood Forged Narrow Superlite 6R Big Brake Kit 140-15409-D. This application-specific kit uses forged billet-aluminum, black-finish six-piston front calipers and includes front rotors and brake pads. The kit is intended to increase brake capacity; fitment should be confirmed for the vehicle before ordering.
Included front rotors are vented, cross-drilled and slotted, with a 14.00-inch (355.60 mm) diameter and 1.10-inch thickness. They have a dual bolt pattern for 5 x 4.50-inch or 5 x 4.75-inch wheels (5 x 114.30 mm or 5 x 120.65 mm). The included pads use Wilwood BP-10 friction material.
- Front calipers: forged billet aluminum, black, six pistons
- Minimum recommended wheel diameter: 18 inches
- Includes 1/2-inch-20 wheel studs
- Sold as a kit; not remanufactured
This is a front brake kit only. Rear rotors and calipers are not included, and the kit has no parking-brake provision. Front spindles, master cylinder, brake booster and brake hoses are also not included. Wilwood describes the kit design as compatible with OE master-cylinder output and ABS functions where those systems are used.
Manufacturer: Wilwood Disc Brakes. Manufacturer part number: 140-15409-D; Summit Racing part number: WIL-140-15409-D; UPC: 889545087765. Confirm the kit’s application and the required wheel clearance before purchase.
