Description
Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit, part number 140-15910-DR (Summit Racing part number WIL-140-15910-DR; UPC 889545093360), is an application-specific front brake kit designed to increase brake capacity. The kit’s design is described as compatible with OE master-cylinder output and ABS functions where used; confirm application fitment before ordering.

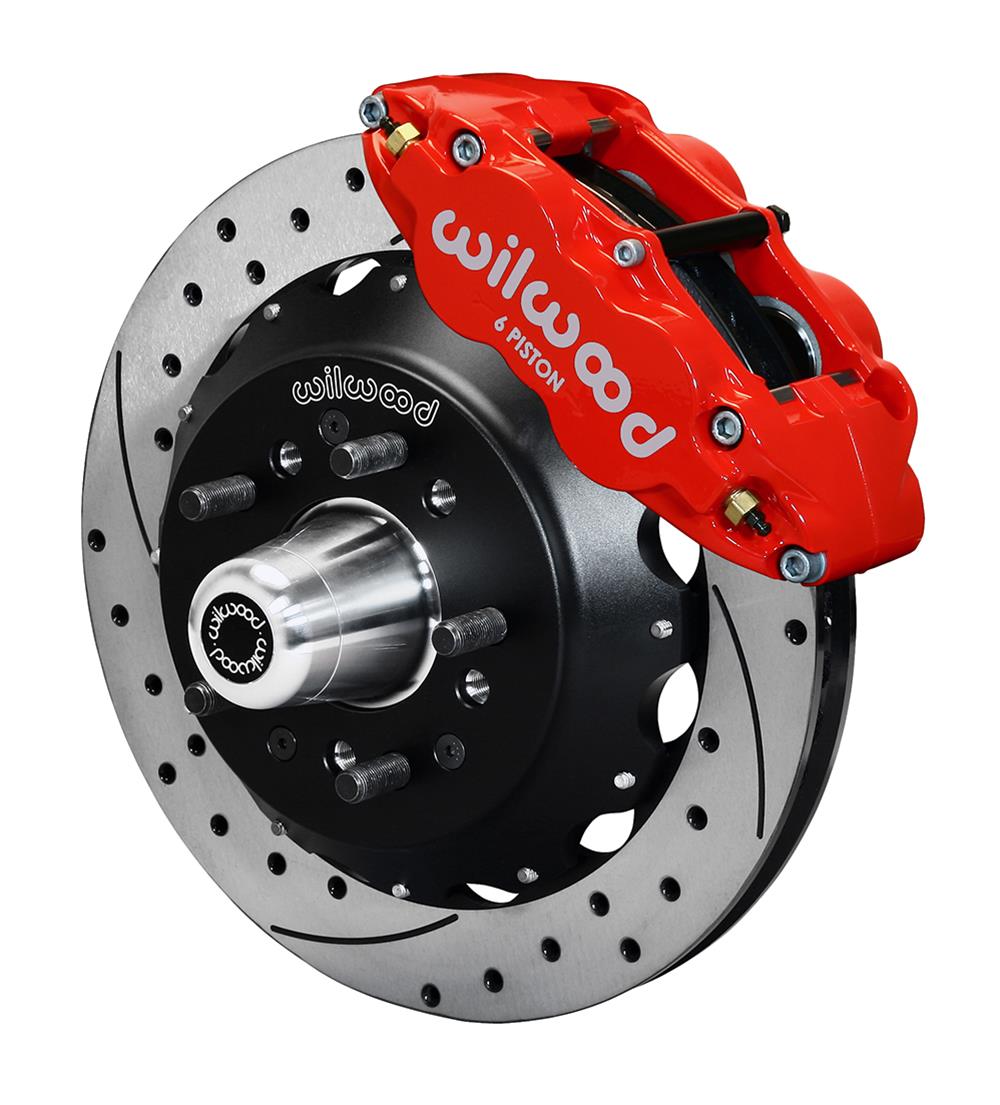

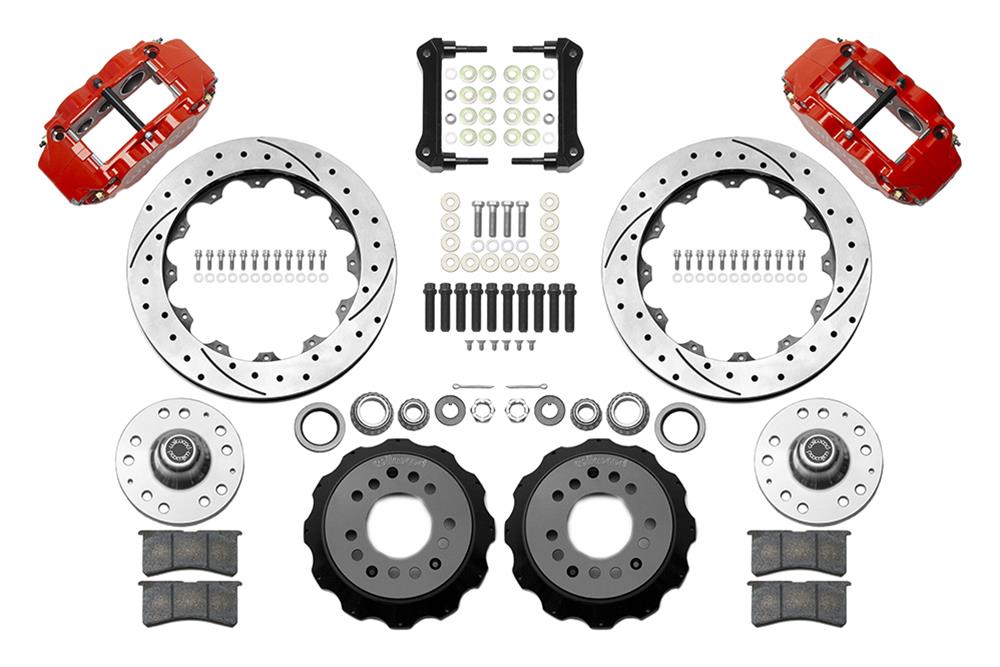

It includes forged billet-aluminum, red, six-piston front calipers and vented front rotors with cross-drilled/slotted surfaces. The rotors measure 12.88 in. (327.20 mm) in diameter and 1.10 in. thick, with a dual bolt pattern for 5 x 4.50 in. and 5 x 4.75 in. (5 x 114.30 mm and 5 x 120.65 mm).
- Front brake pads included; friction material: BP-20
- Minimum recommended wheel diameter: 17 in.
- Caliper offset: 0.380 in.
- Sold as a kit; not remanufactured
This is a front-only kit. Rear rotors and calipers are not included. It also does not include front spindles, a master cylinder, a brake booster, or brake hoses, and there is no parking-brake provision.
