Description

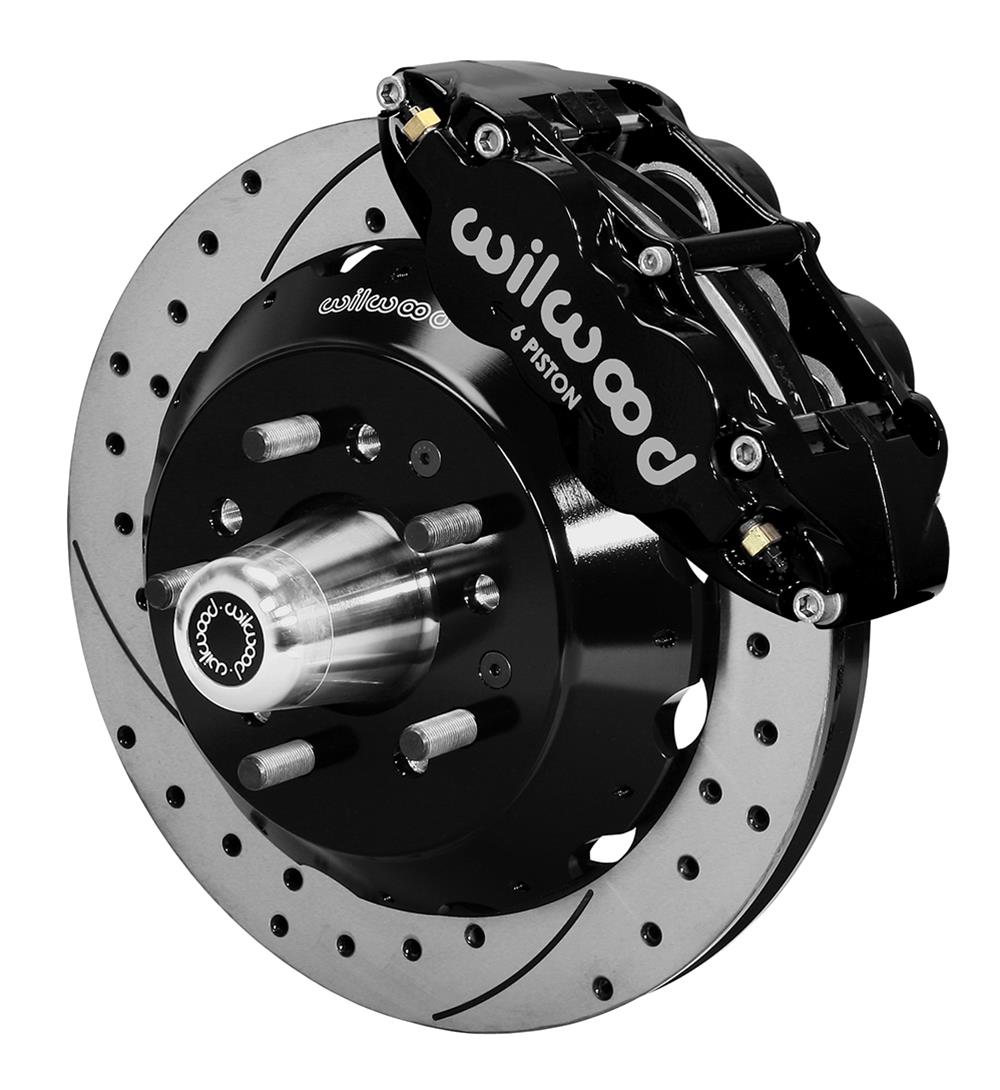

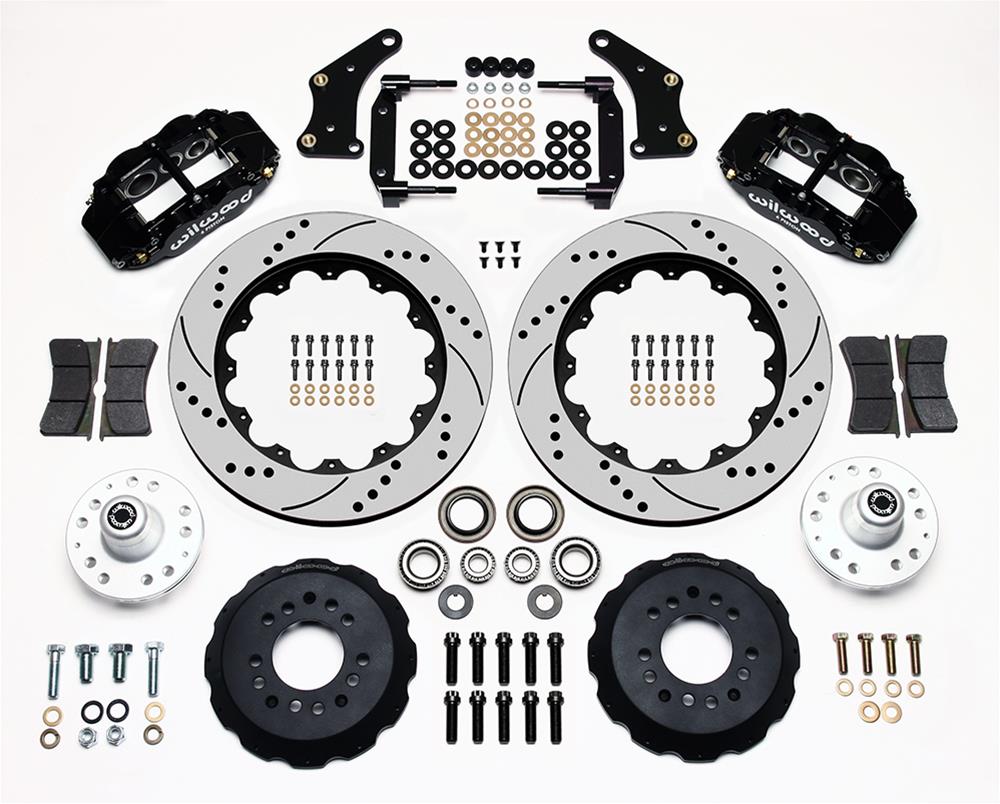

Upgrade the front brakes with Wilwood Forged Narrow Superlite 6R Big Brake Kit 140-10284-D. This application-specific kit combines black forged-billet-aluminum six-piston calipers with 14-inch vented rotors featuring a cross-drilled and slotted surface. It is designed for use with Classic Performance Production 2-inch drop spindles; it will not work with OE spindles.

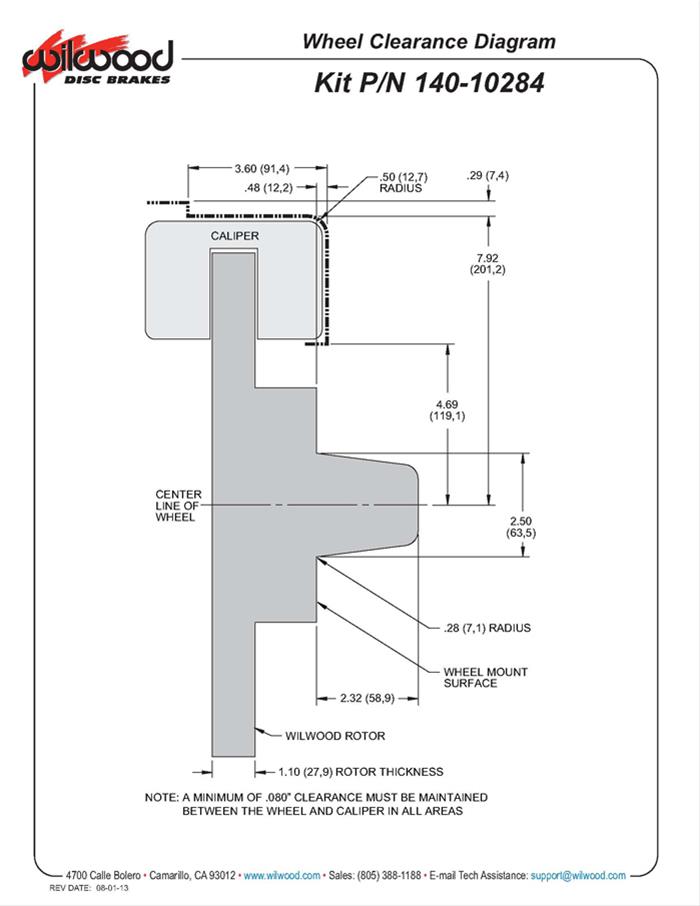

The kit is intended to provide increased front brake capacity and is described by Wilwood as compatible with OE master-cylinder output and ABS functions, where used. Check the specified spindle fitment and wheel-clearance requirements before ordering.
- Position: Front
- Rotors: Included; vented, cross-drilled/slotted; 14.00 in. (355.60 mm) diameter and 1.10 in. thick
- Rotor bolt patterns: Dual 5 x 4.50 in./5 x 4.75 in. (5 x 114.30 mm/5 x 120.65 mm)
- Calipers: Included; six-piston, forged billet aluminum, black
- Brake pads: Included; BP-10 friction material
- Minimum recommended wheel diameter: 18 in.
- Wheel studs: 1/2 in.-20 studs included
This is a front kit only: rear rotors and calipers are not included. Front spindles, master cylinder, brake booster, and brake hoses are also not included. The kit has no parking-brake provision and is not remanufactured. Sold as one kit.
Wilwood part number: 140-10284-D. Summit Racing part number: WIL-140-10284-D. UPC: 889545009170.
